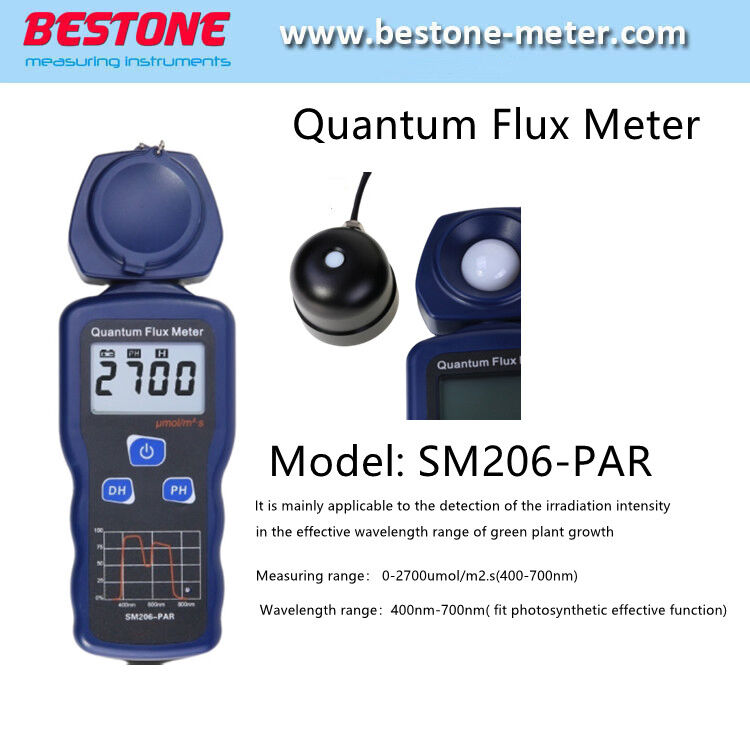

Quantum Flux Meter PAR Solar Power Meter Sm206-PAR

MOQ:	2
Price:	187

Detail Information

Product Description

Detail Information

Model NO.:

SM206-PAR

Resolution:

1umol/M2.S

Unit:

Umol/M2.S Is Photosynthesis Rate, 1MW/Cm2=46umol/

Error Range:

±(10%R+2dgt)

Display LCD:

3-3/4 LCD Display, Maximum Displayed Numerical VAL

Measuring Range:

0-2700umol/M2.S(400-700nm)

Wavelength Range:

400nm-700nm( Fit Photosynthetic Effective Function

Transport Package:

Carrying Case

Specification:

CE, ROHS

Trademark:

BESTONE

Origin:

China

HS Code:

9031499090

Production Capacity:

500000pieces/Year

Product Description

This product is an instrument to measure the photosynthetic effective radiation intensity in the natural light or simulated natural light in the wavelength range of 400-700nm. It is mainly applicable to the detection of the irradiation intensity in the effective wavelength range of green plant growth photosynthesis. It has a wide range of uses in agricultural production and scientific research, aquaculture, flower planting, horticulture, etc. It is especially suitable for the detection of simulated natural light sources for underwater plant and ornamental plant cultivation and planting (such as detecting LED plant growth fill light).
Feature:
1.Peak hold function
2.Data retention function
3.Dual-channel detection of photosynthetically effective radiation,
can routinely detect in the air and equipped with a waterproof probe for underwater detection.
4.The optional waterproof probe automatically recognizes and automatically switches to the measurement reading.
Specification:

Resolution: 1umol/m².s

Unit:umol/m².s is photosynthesis rate, 1mW/cm2=46umol/m².s

Error range:Â±(10%R+2dgt) R: reading (detecting a composite

light source that approximates the sunlight spectrum)

The reading error will increase under incandescent lamp or

monochromatic yellow light.

Display:3-3/4 LCD display, maximum displayed numerical value 3999,

over load "OL"

Drift: <=Â±2% /year

Linearity:Â±2%

Measuring range: 0-2700umol/m².s(400-700nm)

Wavelength range:400nm-700nm( fit photosynthetic effective function)

Sampling time: 2.5 times/s

Operation temperature and humidity: 0Â°C to 40Â°C <80%RH

Storage temperature and humidity: -10Â°C to 50Â°C <70%RH

Dimensions and weight: 132(L) 60(W) 38(H)mm, approx. 150g

Power: 6F22 alkaline 9V battery

Battery operation life: Approx. 100 hours
