Electric Power Tester
Created with Pixso. Electronic Resistance Surface Insulation Meter Surface High Resistance

Electronic Resistance Surface Insulation Meter Surface High Resistance

MOQ: 60
Price: 17
Detail Information
Certification:
RoHS, CE
Model NO.:
BE3110
Display Type:
Digital Only
Customized:
Customized
Measuring Range Of Resistance:
10^(3) - 10^(12) Ohm
Accuracy:
(+/-10)%
Data:
Data Hold Function.
Response Time Of Resi Stance Measurement:
1s
Measuring Range Of Temperature:
0ºC~50ºC/32~122ºF
Measuring Precision Of Temperature:
±2ºC/±3.6ºF
Power Supply:
9V 6f22 Battery
Dimension:
63.6X31X125.8mm
Weight:
157.60g
Transport Package:
Blister
Specification:
25cmx7cmx5cm, 0.2kgs, Plastic
Trademark:
BESTONE, BENETECH
Origin:
China
Highlight:

Electronic Resistance Surface Meter

,

Surface Insulation Meter

,

High Resistance Surface Meter

Product Description

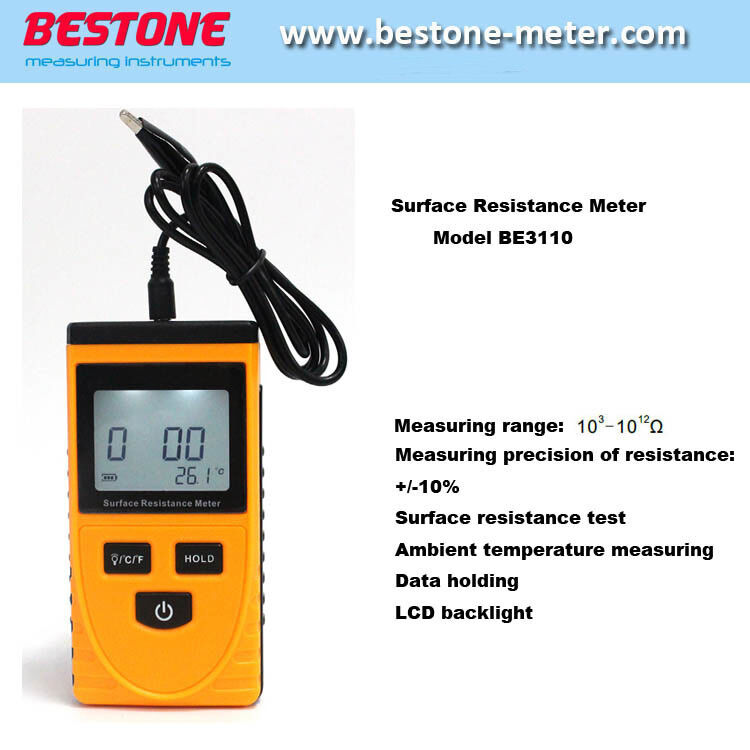

As one resistance meter for object surface, BE3110 can measure the resistance value on object surface by putting two parallel electrodes close to object surface to be measured, so as to judge whether the measured object is a conductor, static material or insulator; meanwhile the meter can be used to measure the resistance to ground of object, which is specially applied to different antistatic fields.

Features:
  1. Surface resistance test;
  2. Three modes to display resistance value on object surface or material property simultaneously;
  3. Ambient temperature measuring;
  4. Temperature unit conversion;
  5. Data holding;
  6. LCD backlight.
Specification:


Products pictures:
