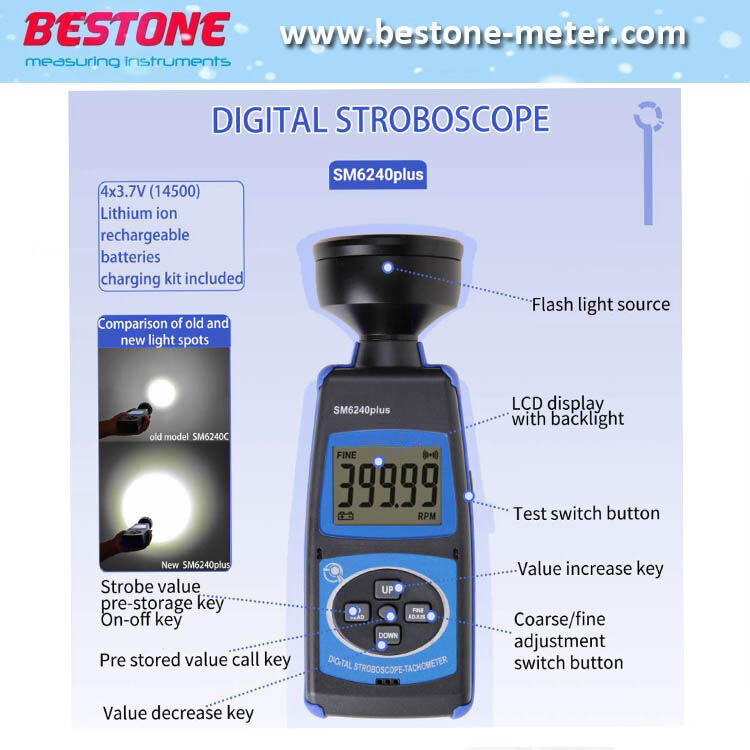

5 Digits LCD Digital Stroboscope Tachometer Sm6240plus With Backlight

MOQ:	2
Price:	136

Detail Information

Product Description

Detail Information

Model NO.:

SM6240plus

Display:

Digital

Detection Method:

Non-contact

Connection Type:

Wireless

Noctilucence:

LCD

Weight:

>100g

Store:

10 Commonly Used Stroboscopic Data

Measuring Range:

60 ~ 40000rpm/FPM

Accuracy:

0.05%

Resolution:

<400rpm: 0.01rpm/FPM

Resolution 2:

<4000rpm: 0.1rpm/FPM <40000rpm: 1rpm/FPM

Time Base:

10MHz Industrial Grade Quartz Crystal

Display LCD:

5 Digits LCD With Backlight, Max. Indication: 400

Power Supply:

× 3.7V(14500) AA Lithium Ion Battery

Transport Package:

Carrying Case

Specification:

CE, ROHS

Trademark:

BESTONE

Origin:

China

HS Code:

9025800000

Production Capacity:

500000pieces/Year

Highlight:

LCD Digital Stroboscope Tachometer

5 Digits LCD Digital Tachometer

Stroboscope and Tachometer With Backlight

Product Description

Introduction:

The stroboscope is a rotational speed measuring instrument that makes use of the persistence of vision (when the light source
lashing at the set frequency is synchronized with the rotational speed of the object, a relatively static visual persistence phenomenon occurs).
When observing an object rotating at a high speed or moving, by adjusting its flickering frequency to be close to and
ynchronizing with the rotation or moving speed of the measuring object, the measured object looks be moving slowly or static
although moving at a high speed, this optical phenomenon of persistence of vision makes it easy to observe the motion of high-speed moving objects with the naked eyes. In this way, it is possible to measure the rotational speed of various types of rotating
bjects without contact, as well as to detect the motion state and surface defects of the object. Its application is very wide, such as various types of rotors, gear meshing, vibration equipment diagnostics, textile, printing, production lines and other high-speed rotating object surface defects and motion trajectories.

Performance features:

* The advanced technologies such as micro-computer technology (CPU), software frequency generator and anti-jamming technology are applied to conduct non-contact measurement of rotation speed, as well as to inspect the status of moving
objects and detect defects on the surface.

* Large LCD with backlight ensures clear readings and no parallax.

* Two adjustment ways: single-step adjustment (coarse/fine adjustment) and continuous adjustment (coarse/fine adjustment) for easy measurement.

* With data storage function, it can store 10 commonly used stroboscopic data, which can be called up at any time, very convenient and quick.

* There are special backlight and flash control switches, saving battery power.

* The power supply uses four AA 3.7V lithium-ion rechargeable batteries (14500) to ensure long-lasting power.
When the voltage is lower than the specified voltage, it will automatically prompt.

* 4 groups high-brightness and big powder LED flash heads, double the brightness and more convenient to use (observe).

* The structure is sturdy and exquisite. The whole machine adopts durable and high quality electronic components. The outer
casing is made of light weight and hard ABS+PC engineering plastic. It has beautiful appearance, convenient carrying and simple operation.

Specifications:

Measuring range: 60 ~ 40000RPM/FPM

RPM: R / min

FPM: F / min

Coarse / fine tuning range<400RPM,

Coarse tuning: 1RPM/FPM

Fine tuning: 0.01RPM/FPM

< 4000RPM,

Coarse tuning: 10RPM/FPM

Fine tuning: 0.1RPM/FPM

< 40000RPM,

Coarse tuning: 100RPM/FPM

Fine tuning: 1RPM/FPM

Accuracy: 0.05%

Resolution:<400RPM: 0.01RPM/FPM

<4000RPM: 0.1RPM/FPM

<40000RPM: 1RPM/FPM

Time base: 10MHz industrial grade quartz crystal

Display: 5 digits LCD with backlight, Max. indication: 40000

Power supply: 4 Ã— 3.7V(14500) AA Lithium ion rechargeable batteries

Power loss: Approx. 60mA

Dimensions: 195 Ã— 73 Ã— 38mm

Weight:Approx. 220g
