| Brand Name: | Bestone |
| Model Number: | SM2235PLUS |
| MOQ: | 20 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Display | 5-digit LCD display, character height 18mm |
|---|---|

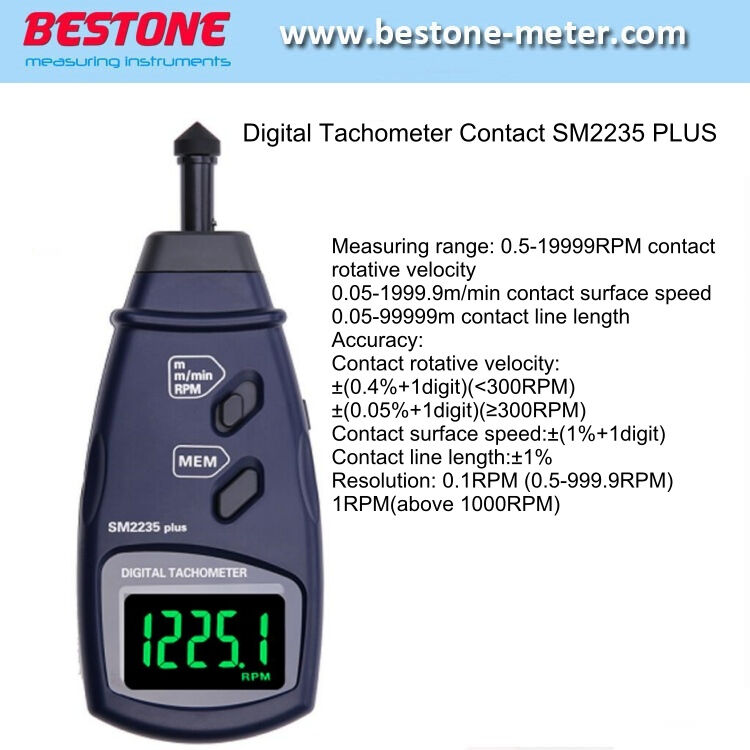

| Test Range | Contact rotational velocity: 0.5-19999 RPM Contact surface speed: 0.05-1999.9 m/min Contact line length: 0.05-99999 m |
| Resolution | Contact rotational velocity: 0.1 RPM (0.5-999.9 RPM), 1 RPM (above 1000 RPM) Contact surface speed: 0.01 m/min (0.05-99.99 m/min), 0.1 m/min (above 100 m/min) Contact line length: 0.02 m (0.05-99999 m) |
| Measurement Accuracy | Contact rotational velocity: ±(0.4%+1 digit) (<300 RPM), ±(0.05%+1 digit) (≥300 RPM) Contact surface speed: ±(1%+1 digit) Contact line length: ±1% |
| Sampling Time | 0.8 seconds (over 60 RPM) |
| Range Selection | Automatic switching |
| Time Base | 6MHz quartz crystal |
| Power Source | 3×1.5V AA UM-4 batteries |
| Power Consumption | Approximately 35mA |
| Operating Temperature | 0～40℃ |
| Size | 170×70×35mm |
| Weight | Approximately 200g (including battery) |
| Accessories | 1 portable box, 4 probes, 1 operation manual, 1 screw |
