| Brand Name: | Bestone |
| Model Number: | SM6240C |
| MOQ: | 5 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

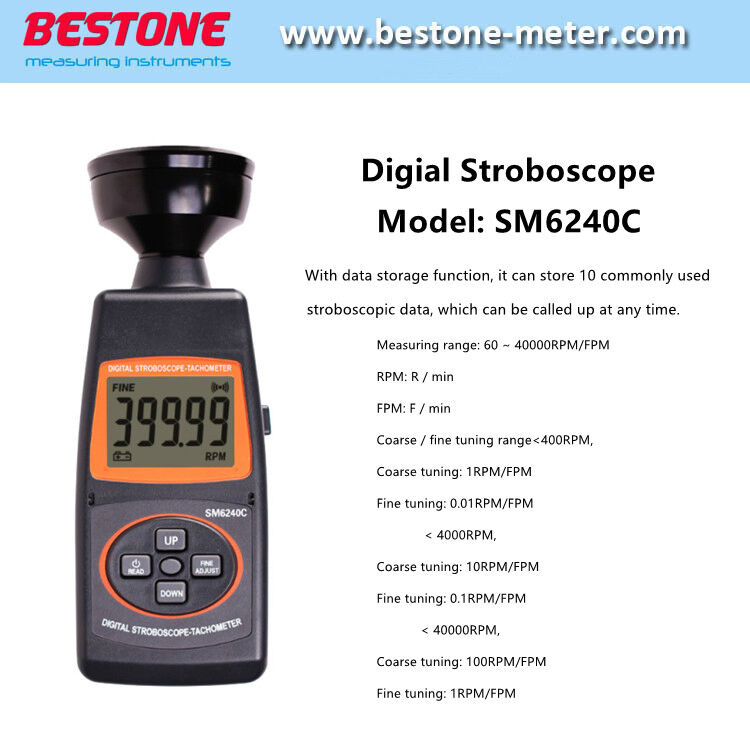

The SM6240C Digital Stroboscope is a precision rotational speed and vibration measuring instrument that utilizes the persistence of vision principle. When the light source flashing frequency synchronizes with the rotational speed of the object, it creates a relatively static visual persistence phenomenon, enabling clear observation of high-speed moving objects.
This non-contact measurement tool allows for precise rotational speed measurement and inspection of motion states and surface defects across various industrial applications including rotor analysis, gear meshing, vibration diagnostics, textile, printing, and production line monitoring.
| Display | 5 Digits LCD with backlight, Maximum indication: 40000 |
|---|---|
| Test Range | 60~50000 RPM/FPM RPM: R/min | FPM: F/min Coarse/fine tuning ranges: • <500 RPM: Coarse 1 RPM/FPM, Fine 0.01 RPM/FPM • <5000 RPM: Coarse 10 RPM/FPM, Fine 0.1 RPM/FPM • <50000 RPM: Coarse 100 RPM/FPM, Fine 1 RPM/FPM |
| Resolution | • <500 RPM: 0.01 RPM/FPM • <5000 RPM: 0.1 RPM/FPM • <50000 RPM: 1 RPM/FPM |
| Measurement Accuracy | 0.05% |
| Power Consumption | Approximately 60mA (5000ppm) |
| Time Base | 10MHz industrial grade quartz crystal |
| Power Supply | 4 × 3.7V AA lithium-ion rechargeable batteries (14500) |
| Dimensions | 195 × 73 × 38mm |
| Weight | 220g (including battery) |
| Operating Temperature | 0～40℃ |
| Standard Accessories | Portable box, Operation manual, 4 × 3.7V lithium-ion rechargeable batteries (14500), Charging adapter, Charging plug |
