| MOQ: | 1 |
| Price: | 230 |
Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.

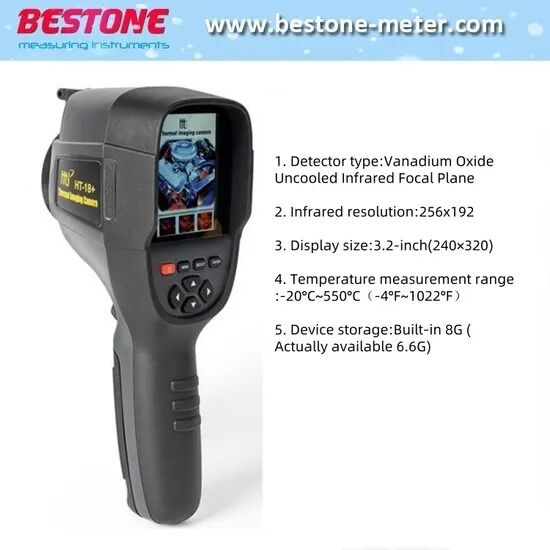

| Model | HT-18+ |
| Detector type | Vanadium Oxide Uncooled Infrared Focal Plane |
| Infrared resolution | 256x192 |
| Pixel Size | 12μm |
| Focal length | 4.0mm |
| Field angle | 56°(H)x 42°(V) |
| IFOV | 3.75mrad |
| Working band | 8~14um |
| NETD | ≤50mk@25°C, @F/1.0 |
| Image frame rate | ≤25Hz |
| Focusing mode | Fixed |
| Emissivity setting | Adjustable from 0.01 ~ 1.00 |
| Temperature measurement mode | Center point/hot and cold spot tracking |
| Color palette | Rainbow, iron, cold color, white hot, black hot |
| Temperature measurement range | -20°C~550°C(-4°F~1022°F) |
| Measurement accuracy | -15°C~550°C±2°C or ±2%; -20°C~15°C±4°C |
| Other | |
| Display size | 3.2-inch(240×320) |
| Device storage | Built-in 8G (Actually available 6.6G) |
| Picture /Video format | JPG/MP4 |
| Image analysis function | Support offline analysis on PC |
| Language | Chinese, English, Russian |
| Battery Type | Dedicated removable rechargeable lithium battery |
| Battery capacity | 2000mAh |
| Working time | 2~3hours |
| Power interface | Type-C |
| Power configuration | 5 minutes / 20 minutes / no automatic shutdown |
| Work temperature | -10°C~+50°C(14°F~122°F) |
| Storage temperature | -20°C~+60°C(-4°F~140°F) |
| Relative humidity | 10%~85%RH(non-condensing) |
| Product size | 90x105x223mm |
| Product weight | 389g |
