I. Overview
Thank you for purchase our Products. Please read this manual first before use it. It will tell you how to use the product and simply inspect it so as to exert the ruggedization and durable of it's merit.III. Technical indicators:

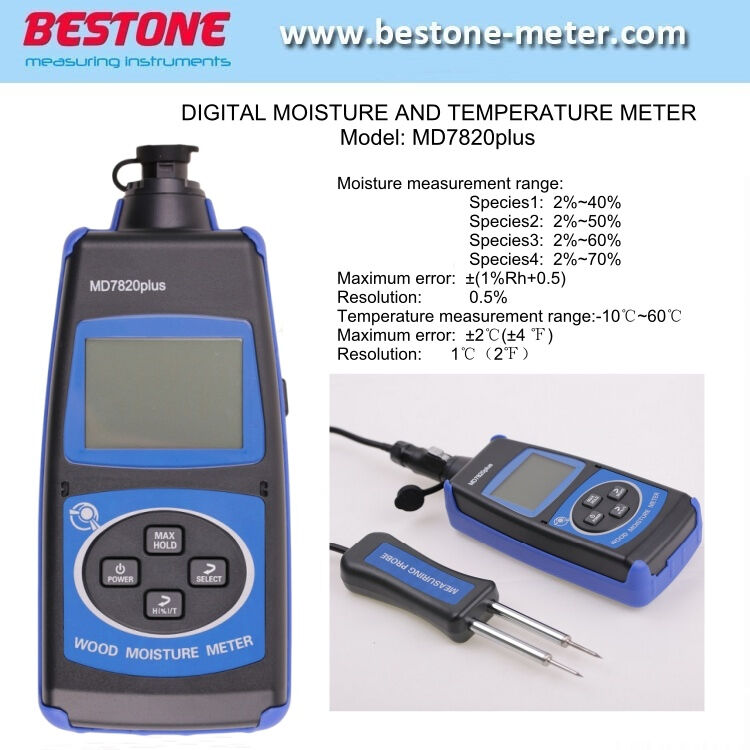

Moisture measurement range:
Species1: 2%~40%
Species2: 2%~50%
Species3: 2%~60%
Species4: 2%~70%
Maximum error: ±(1%Rh+0.5)
Resolution: 0.5%
Temperature measurement range: -10ºC~60ºC
Maximum error: ±2ºC(±4 ºF)
Resolution: 1ºC(2ºF)
Environment:
Ambient temperature:-10ºC~40ºC
Ambient humidity: 0~70%Rh
Weight: 350g
(The above weight includes the measurement probe, not including battery.)
Dimensions: 165×78×43mm (for main unit)
182×43×25mm (for measurement probe)
IV. Display illustration(Picture 1)
1,Wood category selection
2,Low voltage prompt
3,Data hold
4,Moisture prompt
5,Temperature prompt
6,Maximum value hold
V. Panel illustration(Picture 2)
1,Measurement probe
2,Measurement probe plug
3,Measurement probe rabbet
4,Display screen
5,Select/cancel maximum value hold button
6,Power switch button
7,Measurement reading hold button
8,Conversion button (convert wood category when measuring wood moisture and convert between Celsius and Fahrenheit when displaying temperature.)
9,Moisture/temperature switching button
10,Backlight switch(In the battery case of the meter)
